Your Professional Oil Booms Supplier

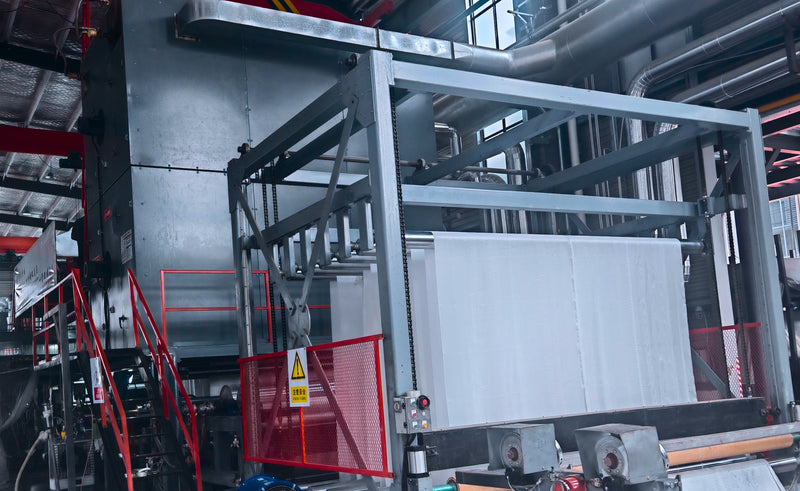

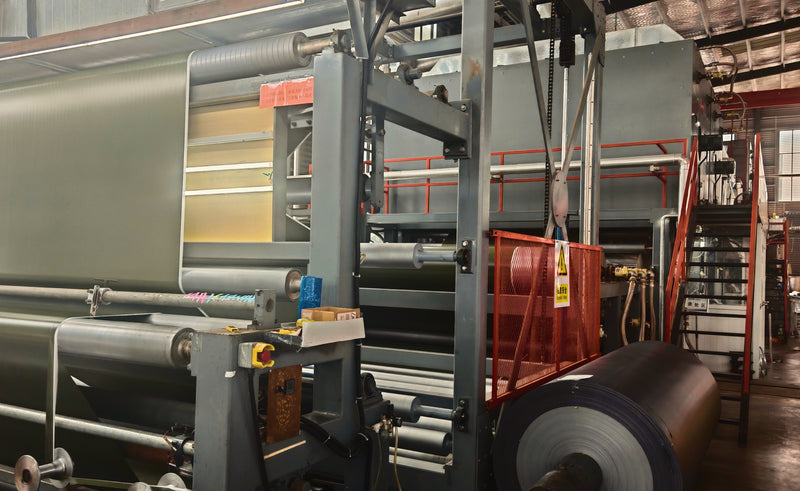

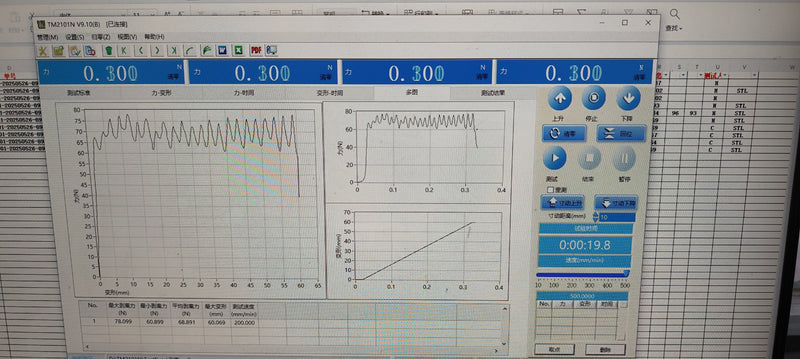

Shanghai DER New Material Co., Ltd is built under EU standard at its production and physical testing methods. production area 60,000 square meter, registered with 2.5 million US dollars. 3 calendars, 1 knife coating machine, 2 hot melt machine and 5 lamination machine, 25 senior engineers and 450 workers make our factory more competitive among the Coated fabric supplies.
Features
- Instant Deployment – No Inflation Required: Foam-filled structure eliminates the need for air pumps or inflation, ensuring rapid deployment in emergency situations.Flexible and rollable design allows for easy transport and compact storage.
- Stable Buoyancy for Complex Water Conditions: High-density closed-cell foam floats maintain excellent buoyancy and prevent water absorption. Suitable for use in tidal, windy, or wavy environments without submerging or drifting off position.
- Durable PVC Material – UV & Oil Resistant: Made with heavy-duty coated PVC fabric (650–900gsm options), offering excellent resistance to UV rays, saltwater, and petroleum products. Designed for long-term outdoor use in harsh marine or industrial conditions.
- Modular Design with Quick Coupling: Equipped with ASTM Z-connectors or stainless steel hooks for fast, secure, and compatible linkage. Easily extendable to cover large areas, fully compatible with most market-standard oil boom systems.
- Versatile for a Wide Range of Applications: Ideal for use in combination with absorbent pads, socks, or skimmers to build a complete spill control system. Widely used in ports, maritime operations, power plants, oil terminals, environmental agencies, and emergency response teams.
How to treat Oil spill?
The first step in the treatment program for oil spill emergency response at sea is generally the physical treatment method, which is a simple and mature technology.
Step 1, Use Oil Silt Curtains to enclose the oil in the oil spill area as a closed zones.
Step 2, Use machinery to pump the large area of oil and sewage into a special vessel and send it to a special treatment plant for centralized treatment.
Step 3, Use the oil-absorbing mat to adsorb the remaining oil pollution on the surface of water, and then the adsorbed oil-absorbing felt is collected and sent to the specialized factory for centralized treatment.
Key Features & Advantages
We're well-known as one of the leading oil booms manufacturers and suppliers in China. Please feel free to buy custom made oil booms from our factory. For price consultation, contact us.
Boom Body

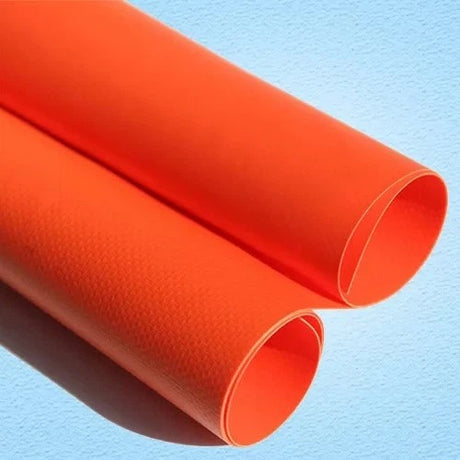

The fabric we adopted is the quality PVC both‐sided coated polyester fabric. (850g/sm generally)
The Floating Body Material
EPS foam floating body，with EPE oil resistance thin film outside. The float looks like the water drop, with counter weight inside to have the feature of a tumbler.
Hardware Fitting
The material should be strength, marine used material. Anchor chain and the hanging ring should be the material of marine anchor chain, and all connecting part should be galvanized.
|
Product Name |
PVC solid float type oil boom |
|
Material |
0.7mm – 1.5mm PVC |
|
Model |
WGV450/WGV600/WGV750/WGV900 |
|
Color |
River Containment Boom |
|
OEM service |
Print Logo, different material thickness, do as the drawing |
|
Working Temperature |
-30℃-70℃ |
|
OEM service |
Print Logo, different material thickness, do as the drawing |
|
Life-time |
More than 7 years under normal use. |
|
Advantages |
1. Good stress state, high overall strength and long service life. 2. Good water posture, stable, strong oil retention ability. 3. Good wave riding.Easy to place. 4. Easy to clean and maintain. 5. Double-sided coated PVC reinforced plastic cloth is the column material. 6. Sealing, quick connection, time and labor saving, in line with international standards. 7. The upper, middle and lower ridges, stiffening belts and counterweight chains are longitudinal force elements. Each section of the oil boom has a fixed anchor seat, so that the skirt of the oil boom forms a concave surface of underwater oil stagnation in the water flow, and the flexible section of the oil boom forms a concave surface of water oil stagnation. 8. Crossbar type float with flexible sections between floats. 9. Each section is 20 meters, with convenient intersection connection. |
|
Overall Height (mm) |
600 |
700 |
750 |
800 |
900 |
1000 |
|
Freeboard (mm) |
150 |
210 |
260 |
280 |
320 |
340 |
|
Draft (mm) |
380 |
390 |
400 |
420 |
490 |
540 |
|
Standard Length per Section (m) |
20 |
20 |
20 |
20 |
20 |
20 |
|
Tensile Strength (KN) |
20 |
25 |
30 |
45 |
55 |
75 |
|
Max. Wave Height to Withstand (m) |
0.5 |
0.5 |
1 |
1.5 |
1.8 |
2 |
|
Max. Wind Speed to Withstand (m/s) |
8 |
10 |
10 |
15 |
15 |
18 |
|
Max. Current Speed to Withstand (KN) |
1 |
1 |
1.5 |
1.5 |
2 |
2.5 |
|
Packing Dimension for 20m (m) |
1x1x0.6 |
1.2x1x1 |
1.2x1x1 |
1.3x1.1x1.1 |
1.4x1.5x1.2 |
1.4x1.6x1.3 |
Frequently Asked Questions
Q: How do oil containment booms work?
Q: How do oil containment booms work?
A: Oil containment booms float at the surface where oil has been spilled, containing an oil slick. They are one of the first tools used in oil spill control and cleanup, creating a flexible barrier that can be used to protect certain environments and property from oil spills.
Q: How are oil containment booms beneficial?
Q: How are oil containment booms beneficial?
A: Oil containment booms offer many benefits in oil spill control and cleanup. Once of the first steps of oil cleanup is containing the spread of the slick by using oil containment booms. Once deployed, oil containment booms are used to contain an oil slick. Oil containment booms are highly effective and easy to customize.
