More Than Just a Surface

Plastic laminates are a key part of modern design and building, found everywhere from kitchen countertops and office furniture to strong flooring and industrial fabrics. While people often notice them for how they look, their real value comes from their smart construction. At its heart, plastic laminate is a material made by joining multiple layers of paper or fabric with special resins using very high heat and pressure. This process changes simple raw materials into one incredibly strong and useful sheet.

This guide will break down the entire manufacturing journey. We will look at the raw materials that form the laminate's base, walk through the step-by-step production process, explain the differences between various laminate types, and share a manufacturer's view on the important quality control steps that make a great product. By the end, you will understand not just what laminate is, but the engineering and science that make it possible.

The Core Manufacturing Process

Creating plastic laminate is a carefully controlled series of steps. Each stage is important to make sure the final product has the needed strength, stability, and good looks. The most common method, used to create High-Pressure Laminate (HPL), can be broken down into five main steps.

Step 1: Material Soaking

The process starts with large rolls of special paper or fabric. These materials form the different layers of the final laminate sheet. The core layers, which give thickness and impact resistance, are usually made from Kraft paper. The top layers, which create the visual design and provide surface strength, are made from high-quality decorative and overlay papers.

These papers are fed through a treatment line, where they are completely soaked in liquid resins. The core layers are filled with a phenolic resin, which is known for its strength, heat resistance, and dark color. The decorative and clear overlay layers are filled with a melamine resin, valued for its clarity, hardness, and resistance to scratches and stains. Getting the correct resin content—the ratio of resin to paper by weight—is very important. Too little resin results in a weak, porous product, while too much can cause brittleness and surface problems.

Step 2: Drying and Hardening

After soaking, the resin-filled papers are carefully guided through long, high-temperature drying ovens. These ovens serve two purposes. First, they remove the solvents (usually water or alcohol) from the resin mixture. Second, and more importantly, they partially harden the resins. This stage, known as B-staging, changes the liquid resin into a dry, solid state that is no longer sticky but has not yet fully hardened or cross-linked. This partial hardening is important; it makes sure the layers can be handled and stacked, but will still flow and join together chemically during the final pressing stage. The B-staged sheets are then cut to the needed size and stored in climate-controlled rooms to keep them stable.

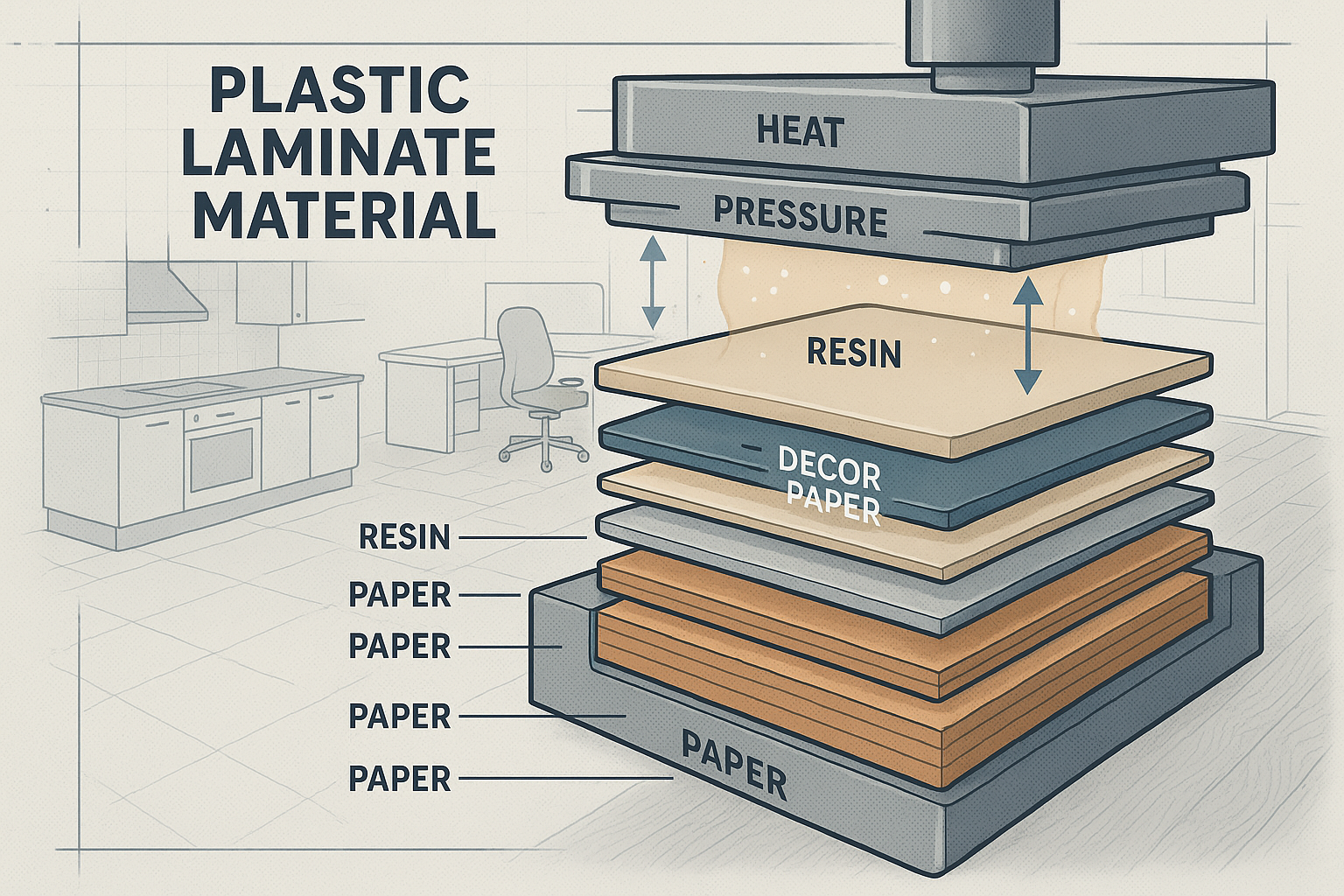

Step 3: Arranging and Assembly

Arranging is the careful process of building the "sandwich" that will become the finished laminate sheet. Workers put together the layers in a precise order. The assembly begins with multiple sheets of the phenolic resin-treated Kraft paper, which form the core. The number of core sheets used directly determines the final thickness and grade of the laminate.

Next, the melamine resin-treated decorative sheet is placed on top of the core stack. This layer carries the printed wood grain, stone pattern, or solid color that gives the laminate its visual appeal. Finally, a single sheet of melamine-treated clear overlay paper is placed on the very top. This overlay acts as the main wear layer, providing the important resistance to scratches, wear, and chemicals that the finished product is known for.

Step 4: The Pressing Cycle

This is the heart of how plastic laminate is made, where the separate layers are changed into a single, inseparable sheet. The assembled "sandwiches" are carefully loaded into a large, multi-opening press. These presses can hold dozens of assemblies at once, separated by textured or smooth steel plates that will give the final surface finish to the laminate.

Once loaded, the press applies huge heat and pressure. For standard High-Pressure Laminate (HPL), conditions are typically set to temperatures around 300°F (150°C) and pressures exceeding 1,000 pounds per square inch (PSI), or about 70 kg/cm². During this cycle, the heat reactivates the B-staged thermosetting resins, causing them to flow and become liquid for a moment. The huge pressure forces this liquid resin to go into the fibers of the nearby paper layers, removing all air and creating a complete fusion. As the cycle continues, the resins undergo a permanent chemical reaction (polymerization), cross-linking to form a hard, dense, and permanent thermoset plastic.

Step 5: Finishing and Fabrication

After the pressing cycle is complete, the stacks are cooled, and the newly formed laminate sheets are removed from the press. At this stage, they are large, rough-edged panels. They move to the finishing department for final processing.

First, the sheets are trimmed to exact final dimensions using high-speed saws. The edges are cut cleanly, making sure they are square and meet specifications. Next, the back of each sheet is sanded. This is not for looks but to create a uniform, slightly roughened surface that provides an excellent grip for the adhesives used to bond the laminate to a base like particleboard or MDF. Finally, every sheet undergoes a thorough quality inspection before being packaged for shipment.

Anatomy of a Laminate Sheet

To fully understand how plastic laminate is made, it's important to understand the specific role each layer plays in the final composite structure. Each component is designed with a distinct purpose, contributing to the overall performance and appearance of the product.

The Invisible Shield Layer

At the very top of the laminate is the overlay layer. Though completely clear and virtually invisible on the final product, it is arguably one of the most important components.

  • Function: This layer serves as the main defense against daily wear and tear. It provides important resistance to scratches, wear, stains, and moisture. Its hardness protects the underlying decorative layer from damage.
  • Material: The overlay is made from a high-quality, high-purity alpha-cellulose paper. This paper is filled with a clear melamine resin, which hardens into one of the hardest thermoset plastics used in modern manufacturing.

The Visual Appeal Layer

Directly beneath the protective overlay lies the decorative layer. This is the component that defines the laminate's visual identity and aesthetic appeal.

  • Function: This layer's only purpose is to provide the color or pattern of the laminate. The quality of the printing and the paper itself is important to achieving a realistic and vibrant appearance, whether it's copying natural wood, stone, or a custom graphic design.
  • Material: It consists of a high-quality paper that has been printed with the desired pattern using advanced, fade-resistant inks. Like the overlay, it is also filled with clear melamine resin. This resin filling not only helps it bond to the other layers but also enhances the clarity and depth of the printed design.

The Foundation of Strength

The core layers form the bulk of the laminate sheet and provide its structural strength. While hidden from view in the final application, they are the foundation of the product's strength and stability.

  • Function: This multi-layered core provides thickness, stiffness, and impact resistance. It is the backbone that prevents the laminate from being brittle and gives it the substance to withstand bumps and stresses. The core also plays an important role in the dimensional stability of the product, helping it resist warping or changing shape with changes in temperature and humidity.
  • Material: The core is made up of multiple layers of Kraft paper, the same strong paper used for grocery bags and heavy-duty packaging. These sheets are filled with a dark-colored phenolic resin. The number of Kraft paper layers used is directly related to the final thickness of the laminate sheet.

Advanced Lamination Technologies

While the high-pressure process with paper is standard for decorative laminates, the principles of lamination extend to a much wider range of materials and technologies. These advanced methods are designed to meet specific performance demands that go beyond what paper-based laminates can offer.

Thermal vs. Adhesive Lamination

Not all lamination requires the massive pressure of an HPL press. For materials that are sensitive to high heat or pressure, alternative methods are used.

  • Thermal Lamination: This process uses a film or web that has a heat-activated adhesive layer. The film is placed against a base, and the pair is run through heated rollers. The heat melts the adhesive, and the roller pressure creates a bond. It's a common method for protecting documents or creating protective graphic overlays.
  • Adhesive Lamination: This technique involves applying a liquid adhesive to one base, which is then joined to a second base by pressure from rollers. This can be done with or without heat, making it suitable for a wide variety of materials, including foams, foils, and delicate textiles.

Lamination on Fabric Bases

The concept of fusing layers for better performance is central to the world of technical textiles. Here, a durable fabric base is used instead of paper, creating materials with exceptional flexibility, tensile strength, and weather resistance. This is where pvc laminated fabrics come into play. This process involves bonding a solid, waterproof PVC (polyvinyl chloride) film to a woven or non-woven base textile.

The base fabric provides the core strength and tear resistance, while the PVC layer provides an impermeable barrier against water, chemicals, and UV radiation. The choice of base material is important; for instance, a laminated polyester fabric combines the natural strength, low stretch, and stability of polyester with the rugged, waterproof qualities of a PVC coating, creating a material ideal for demanding outdoor applications.

The Role of PVC in Lamination

PVC has become a leading material in modern industrial lamination due to its unique combination of properties. When used as a laminate film, it offers several key advantages:

  • Durability and Water Resistance: PVC is naturally waterproof and highly resistant to wear and tearing.
  • UV Stability: With the inclusion of specific additives, PVC can be made to withstand long sun exposure without significant breakdown.
  • Chemical Resistance: It holds up well against a wide range of chemicals, oils, and greases.
  • Versatility: It can be made for different levels of flexibility, flame resistance, and color.

A finished laminated fabric is an engineered product designed for performance. These materials are used to create truck tarps, architectural tensile structures, industrial curtains, and high-performance protective covers. In essence, a laminate pvc sheet or fabric provides a strong and reliable solution where traditional paper-based laminates would fail due to lack of flexibility or environmental exposure.

A Manufacturer's Perspective

Understanding the step-by-step process is one thing; appreciating the constant focus on quality is another. From a manufacturer's viewpoint, consistency and precision are not just goals, they are non-negotiable requirements. The difference between a high-quality laminate that lasts for decades and a low-quality one that fails early lies in the hundreds of small details and quality checks performed throughout the production process.

Critical Quality Checkpoints

At our facilities, every batch of laminate undergoes a series of tests and inspections to ensure it meets or exceeds industry standards.

  • Raw Material Inspection: The process starts before the first sheet is even treated. We check the weight, thickness, and porosity of incoming paper and fabric. Resin batches are tested for thickness, solid content, and reactivity to ensure a consistent cure.
  • Press Cycle Monitoring: During the pressing cycle, computer systems continuously monitor and record the temperature, pressure, and timing for every opening in the press. Any deviation outside of the strict parameters can compromise the final fusion, and our systems flag it immediately.
  • Post-Press Testing: After production, samples from each run are taken to the lab. Here, they undergo thorough testing based on established NEMA (National Electrical Manufacturers Association) standards. We test for scratch resistance, stain resistance against common agents like coffee and mustard, impact resistance, and dimensional stability under varying heat and humidity.
  • Visual Inspection: Every single finished sheet is visually inspected under specialized lighting by trained technicians. They look for any surface defects, color inconsistencies, contamination, or imperfections in the finish before it is approved for shipment.

From Factory to Field

These careful QC steps are directly linked to real-world performance. Proper resin formulation and curing prevent separation in high-moisture environments. Consistent press cycles ensure uniform hardness across the sheet, preventing weak spots. Thorough raw material inspection guarantees color consistency from one batch to the next.

We believe that understanding how high-quality pvc made products are crafted is key to appreciating their value. The careful attention to detail at every stage is what defines a reliable material. For those who have wondered, 'where can I find a trustworthy pvc fabric near me supplier?', seeing the process firsthand offers unmatched insight. We welcome our partners to witness our commitment to quality and transparency, as it is the best way to understand the true value embedded in every product we make.

Choosing the Right Laminate

With a clear understanding of how laminates are made and the different technologies available, you can make a more informed choice for your specific project. Selecting the right material involves matching the product's properties to the demands of the application.

Key Selection Criteria

Before making a decision, ask yourself the following questions:

  • Application: Will the material be used on a horizontal surface like a countertop that requires high wear resistance, or a vertical surface like a cabinet door? Does it need to be a rigid panel, or does it require flexibility for applications like a protective tarp or an architectural membrane?
  • Performance Needs: What specific challenges will the material face? Is extreme scratch resistance the top priority? Is it heat resistance near a cooktop? Or is total waterproofing for outdoor exposure the most important requirement?
  • Looks: What is the desired look and feel? Are you seeking a specific wood grain, a solid color, or a high-gloss finish? Or is the appearance secondary to pure functional performance?
  • Base: What will the laminate be bonded to? A rigid base like MDF or particleboard has different bonding requirements than a flexible textile base.

For applications that demand exceptional durability, flexibility, and complete waterproof characteristics, a specialized pvc fabric is often the better choice over traditional paper-based laminates. These engineered textiles are designed from the ground up to withstand harsh environmental conditions. Exploring a full range of options, including various types of pvc fabric material, will ensure you find the perfect match for your project's specific demands.

The Art and Science of Lamination

The journey from raw paper and resins to a finished laminate product is a testament to the power of materials science and precision manufacturing. The process reveals that a seemingly simple surface is, in fact, a highly engineered composite material. Each layer is carefully chosen and processed, and every step—from resin soaking to the final high-pressure fusion—is precisely controlled to create a product that is both beautiful and incredibly strong. Understanding how plastic laminate is made not only answers a technical question but also builds an appreciation for the art and science behind the durable surfaces that shape our everyday environments.
