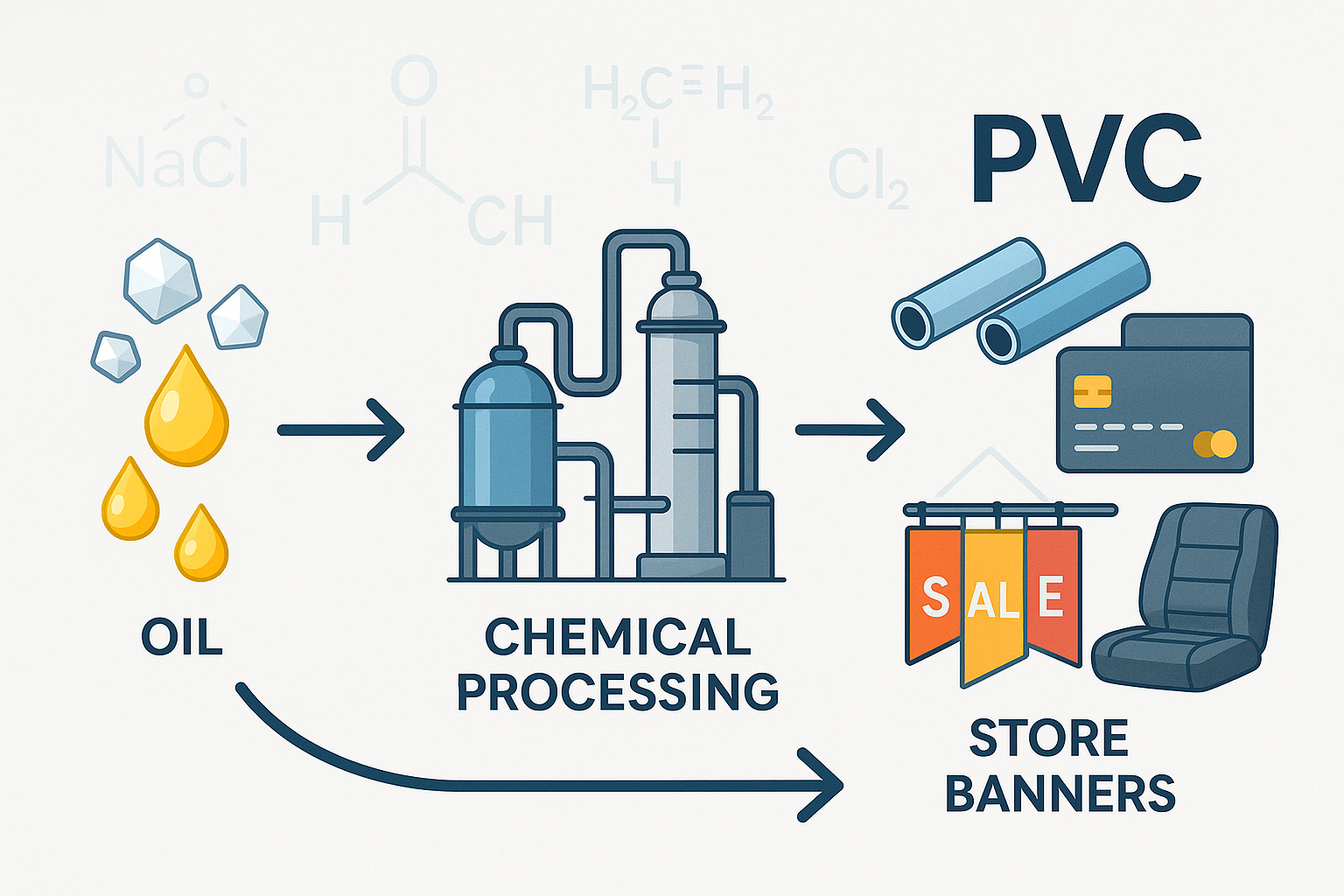

From Salt and Oil to a Super-Material: How PVC is Made Step by Step

Look around you. The water pipe bringing clean water to your home, the credit card in your wallet, the colorful banner on a store front, and even the strong fabric on a boat seat all come from the same place. They are made from Polyvinyl Chloride, or PVC, one of the world's most useful man-made materials. So, how is PVC made? At its heart, this amazing material comes from two simple things—salt and oil—through a complex, step-by-step chemical process. It's an incredible change from basic natural materials into a strong, flexible polymer that can be shaped for many uses.

In this guide, we will walk you through every step of that process. We will start with the basic materials, look at the main chemical reactions, see how PVC is changed for different uses, and learn how it becomes the finished products we use every day. We'll even take a special look at how high-performance fabrics are made, giving you a complete picture of this amazing material.

Getting the Basic Materials

To understand how PVC is made, we must first look at what it's built from. The whole process starts with getting two main ingredients from natural resources that are easy to find: salt and hydrocarbons. This foundation makes the complex chemistry that follows based on simple, available materials.

Getting Chlorine from Salt

The "vinyl chloride" part of Polyvinyl Chloride gets its chlorine from something we all know: regular salt. The process starts with salt water, also called brine. Through a well-known industrial process called electrolysis, an electric current goes through the brine. This breaks apart the salt (sodium chloride) and water molecules, making pure chlorine gas, sodium hydroxide, and hydrogen. This step is highly developed and is a key part of the modern chemical industry. An important fact is that about 57% of PVC's weight comes from chlorine, making it much less dependent on limited fossil fuels than many other common plastics.

Getting Ethylene from Hydrocarbons

The second key ingredient is ethylene. Ethylene is a simple hydrocarbon, a molecule made of hydrogen and carbon atoms. It usually comes from two main sources: natural gas or petroleum (crude oil). The most common way to make ethylene from petroleum is steam cracking. In this process, heavy hydrocarbon materials are heated to very high temperatures (850°C or higher) with steam. This heat "cracking" breaks down the large, complex hydrocarbon molecules into smaller, more useful ones, including ethylene. This ethylene gas is then separated and cleaned for the next step of production.

Making the VCM Building Block

With both chlorine and ethylene ready, the next step is to combine them to make the essential building block of PVC: vinyl chloride monomer, or VCM. This is a two-step reaction that is designed for maximum efficiency.

1. First, ethylene and chlorine are combined to make an intermediate chemical called ethylene dichloride (EDC).
2. Next, this EDC is heated to very high temperatures in a process called pyrolysis. This heat causes the EDC to break down, making two products: vinyl chloride monomer (VCM) and hydrogen chloride (HCl).

Importantly, this process is designed as a closed loop. The hydrogen chloride (HCl) made in the second step is not thrown away. Instead, it is immediately recycled back and used with more ethylene in a process called oxychlorination to make more EDC. This makes the overall production of VCM highly efficient and reduces waste.

The Main Transformation

With our VCM building block ready, we reach the heart of the PVC manufacturing process: polymerization. This is the chemical reaction that changes the simple, individual VCM molecules into the long, stable polymer chains that give PVC its strength and durability. To truly understand how PVC is made, knowing this central transformation is key.

What is Polymerization?

The word itself gives us a clue: "poly" means many, and "mer" means unit. Polymerization is a process where many single monomer units are chemically linked together to form a very long chain, known as a polymer. Think of it like connecting thousands of individual paper clips to form one long, strong chain. In our case, the individual paper clips are VCM molecules, and the final chain is a Polyvinyl Chloride polymer. This process changes the VCM gas into a stable, solid material.

Suspension Polymerization Guide

While there are several ways to polymerize VCM, the most common method, accounting for most of all PVC production, is suspension polymerization. We can break this process down into a clear, step-by-step guide. You can imagine this as a simple flowchart: VCM and water enter a reactor, an initiator is added, polymerization happens, the PVC chains form, and finally, the mixture is dried to make the final resin powder.

• Step 1: Dispersion. The process takes place inside a large, pressurized chemical reactor filled with purified, clean water. Liquid VCM is added and, with strong mixing, is spread throughout the water as tiny, microscopic droplets. The VCM does not dissolve; it stays suspended, which gives the process its name.

• Step 2: Initiation. A small amount of a chemical known as an initiator is added to the reactor. This initiator, which dissolves in the VCM droplets but not the water, is activated by heat. Its job is to "kick-start" the chain reaction by making the first VCM molecule highly reactive.

• Step 3: The Chain Reaction. Once activated, the initiator starts a rapid and heat-releasing chain reaction inside each VCM droplet. The activated VCM molecules quickly link to other VCM molecules, which link to others, and so on. This process happens at the same time in millions of droplets, with the chains growing longer and longer until they become solid PVC. The surrounding water is important for absorbing and controlling the heat created by the reaction.

• Step 4: Completion and Drying. The reaction is carefully watched and stopped when the polymer chains have reached the desired length, which determines some of the final properties of the PVC. At this point, the reactor contains a mixture of fine, solid PVC particles suspended in water. Any unreacted VCM gas is recovered for reuse. The mixture is then sent to be dewatered and dried, leaving behind the final product: a fine, white, free-flowing powder known as PVC resin.

The Art of Compounding

The white PVC resin powder created through polymerization is the raw base material, but it is rarely used by itself. Its true potential is unlocked through a process called compounding. This is the stage where we transform the single raw polymer into hundreds of different PVC variations, each tailored with specific properties for a precise use. This "art of the recipe" is the secret to PVC's incredible versatility.

What is Compounding?

Think of PVC resin as flour. While essential, you need to add other ingredients to bake a specific type of bread, cake, or pastry. Compounding is the industrial equivalent of mixing that dough. The PVC resin is blended with a carefully selected mix of additives in a high-intensity mixer. This process melts the components together into a uniform molten mass, which is then cooled and typically cut into pellets. These pellets, or the compound itself, are what will be used in the final manufacturing step to create a product.

Rigid vs. Flexible PVC

The most basic distinction made during compounding is between rigid and flexible PVC. This single choice determines whether the final product will be a stiff pipe or a soft, bendable fabric.

• Rigid PVC, often called uPVC (unplasticized Polyvinyl Chloride), is created by compounding the PVC resin with stabilizers and other additives, but with no plasticizers. The absence of plasticizers keeps the polymer chains tightly packed, resulting in a material that is strong, stiff, and very durable. This makes it the ideal choice for applications demanding structural strength, such as window frames, plumbing pipes, gutters, and house siding.

• Flexible PVC is made by adding specific chemicals called plasticizers to the compound. These plasticizer molecules fit between the long PVC polymer chains, pushing them apart and allowing them to slide past one another. This greatly increases the material's flexibility, softness, and stretchability. The amount of plasticizer can be varied—from a little for a semi-rigid sheet to over 40% of the total weight for extremely soft products like medical tubing, inflatable structures, and supple pvc fabric.

Other Essential Additives

Beyond the rigid-flexible divide, a supporting cast of other additives is used to fine-tune the PVC compound for its end-use. Each plays a critical role in performance, processability, or appearance.

• Stabilizers: Raw PVC can break down when exposed to high heat (like during processing) or ultraviolet (UV) light from the sun. Heat and UV stabilizers are added to protect the polymer chains from breaking down, ensuring the product's longevity and weather resistance.
• Lubricants: These additives are important for the manufacturing process. They help the molten PVC compound flow more smoothly and prevent it from sticking to the hot metal surfaces of processing equipment like extruders and molds.
• Fillers: Materials like finely ground calcium carbonate (limestone) or talc are often added as fillers. They can be used to reduce the overall cost of the compound, but they also can modify certain physical properties, such as increasing stiffness or improving electrical insulation.
• Pigments: To give PVC its wide range of colors, from bright white to deep black and every color in between, pigments are added during the compounding stage. This ensures the color is built into the material, not just a surface coating.

Shaping the Future

Once the PVC compound has been precisely formulated and pelletized, it's ready for the final transformation: being shaped into a recognizable product. This is where the prepared plastic "dough" is processed through massive industrial machinery to create everything from simple pipes to complex automotive parts. The method chosen depends entirely on the desired shape and form of the final item.

Extrusion for Continuous Shapes

Extrusion is the process used to create products with a long, continuous, and uniform profile. It is one of the most common methods for processing PVC.

• Products: This method is the workhorse for producing pipes, window frames, siding, decking, fencing, and decorative trim.
• Process: In extrusion, PVC pellets or powder are fed into a long, heated barrel containing a rotating screw. The screw moves the PVC forward, and the combination of heat from the barrel and friction from the screw's movement melts the compound into a consistent molten mass. At the end of the barrel, this molten plastic is forced (extruded) through a specially shaped die. The plastic emerges in the desired shape—like a round pipe or a complex window profile. It is then cooled by water or air to solidify its shape and cut to the required length.

Calendering for Flat Sheets

When the goal is to produce a thin, flat, continuous sheet or film, the go-to method is calendering. This process is especially important for flexible PVC applications.

• Products: Calendering is used to make vinyl flooring, wall coverings, shower curtains, credit cards, packaging films, and, importantly, the base material for pvc laminated fabrics.
• Process: The heated PVC compound is fed into a stack of large, heavy, heated rollers known as calenders. As the material passes through the gaps (or "nips") between these rollers, it is squeezed, stretched, and smoothed into a sheet of a precise and uniform thickness. The surface of the final roller can be embossed with a texture, like a wood grain or leather pattern, which is transferred directly onto the hot PVC sheet. The sheet is then cooled over a series of smaller rollers before being trimmed and wound into large rolls.

Injection Molding for 3D Objects

For creating complex, three-dimensional solid objects, injection molding is the ideal technique. This process allows for intricate details and high-volume, repeatable production.

• Products: This method is used for an enormous variety of parts, including pipe fittings (elbows, tees), electrical boxes and switch plates, automotive components, tool handles, and toys.
• Process: In injection molding, PVC pellets are melted in a barrel and then injected under extremely high pressure into a custom-made, two-part metal mold. The molten plastic completely fills the cavity of the mold, taking on its exact shape. The mold is cooled, causing the PVC to solidify. The mold then opens, and the finished part is ejected. The process is highly automated and can produce parts with incredible precision in just a matter of seconds.

A Closer Look: Fabrics

While we often think of PVC as a rigid material for pipes or a flexible one for flooring, one of its most advanced applications is in the creation of high-performance technical fabrics. By combining PVC with a textile base, we can engineer materials with exceptional strength, weather resistance, and durability. Two primary methods are used: lamination and coating.

The Lamination Process

Lamination is a process of fusing distinct layers of material together using heat and pressure to create a single, composite material. This method is excellent for producing strong, stable, and waterproof fabrics.

The process typically starts with a woven base fabric, often a laminated polyester fabric, which provides tensile strength and tear resistance. Separately, thin PVC films are produced via the calendering process described earlier. The base fabric and one or more layers of PVC film are then fed together through a series of heated rollers. The combination of intense heat and pressure fuses the PVC film directly onto the textile substrate, creating a unified laminated fabric. The resulting pvc laminated fabrics are dimensionally stable and highly waterproof, making them ideal for applications like lightweight tarpaulins, tensioned architectural membranes, and high-quality banners. The material itself is often referred to as laminate pvc.

The Coating Process

Coating offers a different approach to creating a seamless, integrated PVC fabric. Instead of bonding a pre-made film, this method involves applying PVC in a liquid state directly onto the base fabric.

For this process, a special PVC compound called a plastisol is created. A plastisol is a dispersion of fine PVC resin particles in a liquid plasticizer. It has a paste-like consistency at room temperature but cures into a solid, flexible solid when heated. In the coating process, the base fabric is passed under a "knife" or roller that spreads a smooth, even layer of the plastisol across its surface. The coated fabric then moves through a long oven, where it is heated to a specific temperature. This heat causes the PVC particles to absorb the plasticizer and fuse together, curing into a tough, flexible, and continuous skin that is fully integrated with the fibers of the base fabric. This process creates a robust and completely weatherproof pvc fabric. This type of pvc fabric material is exceptionally durable and valued for its abrasion and weather resistance, making it perfect for heavy-duty applications like truck covers, industrial curtains, and permanent outdoor tents.

Seeing It Up Close

While reading about how pvc made is informative, seeing it firsthand offers a completely different level of understanding. To truly appreciate the scale and precision of the process, one has to experience it. Imagine standing in a facility filled with the low hum of machinery. You can feel the immense power of the compounding mixers as they blend tons of resin and additives into a perfect, uniform compound. You can sense the radiant heat coming off the massive, polished steel rollers of a calendering line as they press a molten mass into a flawless, paper-thin film.

Witnessing the speed and precision of an extrusion line, where a stream of molten plastic is transformed into a perfectly formed window profile in seconds, is a marvel of engineering. At each stage, you see operators and quality control technicians carefully checking temperatures, thicknesses, and colors. This direct observation provides a deep appreciation for the material's engineered reliability. For those who are truly curious, or for professionals searching for a "pvc fabric near me" to understand the source of their materials, a factory visit is an unparalleled educational experience, bridging the gap between theoretical knowledge and real-world industrial production.

PVC and the Environment

No discussion of a major industrial material is complete without an honest look at its environmental profile. As with any large-scale manufacturing process, PVC production presents both challenges and benefits. A balanced perspective is essential to understanding its place in the modern world.

Environmental Concerns

The primary environmental questions surrounding PVC often relate to three main areas. Acknowledging these concerns is the first step toward addressing them.

• Chlorine Content: The production of chlorine is energy-intensive, and there have historically been concerns about the creation and disposal of chlorinated compounds, including dioxins. Modern manufacturing plants, however, operate under strict environmental controls to minimize or eliminate such emissions.
• Plasticizers: In the past, certain types of phthalate plasticizers used to make flexible PVC raised health and environmental concerns. In response, the industry has undergone a significant shift, with a widespread move toward non-phthalate and bio-based plasticizers, especially for sensitive applications like toys and medical devices.
• End-of-Life: PVC's complex composition, with its wide variety of additives, can make it more challenging to recycle than simpler polymers like PET (bottles) or HDPE (jugs). Separating rigid PVC from flexible PVC, and sorting by color and formulation, presents logistical hurdles.

Durability and Sustainability

On the other side of the ledger, PVC possesses inherent properties and is part of an industry-wide effort that contributes positively to sustainability goals.

• Longevity: Perhaps PVC's greatest environmental strength is its exceptional durability. PVC pipes can have a service life of over 100 years. PVC window frames and siding do not rot, corrode, or need to be painted, lasting for decades. This long lifespan reduces the need for replacement, conserving resources and minimizing waste over the long term.
• Energy Efficiency: The production of PVC is a highly efficient chemical process. It is less energy-intensive to produce than primary materials like aluminum, which is often used for similar applications like window frames.
• Recycling Initiatives: The industry is actively working to solve the end-of-life challenge. Significant progress has been made through organized recycling programs. For example, industry-led initiatives like VinylPlus in Europe have successfully collected and recycled millions of tons of post-consumer PVC. Advanced sorting technologies are being developed to separate different PVC compounds, and recycled PVC is now commonly used to create new products, from flooring and pipes to traffic cones.

Conclusion

The journey of how PVC is made is a remarkable testament to chemical and mechanical engineering. It begins with two of the most basic and abundant raw materials on earth—salt from the sea and hydrocarbons from the ground. Through a series of precise and controlled transformations, these simple ingredients are converted into an incredibly versatile and durable polymer.

We have followed this path from the creation of the VCM monomer, through the core polymerization reaction that forges it into a stable resin, and into the art of compounding, where it is customized for a specific purpose. Finally, we saw how engineering processes like extrusion, calendering, and molding shape that compound into the vast array of products that define our modern infrastructure and daily lives. This multi-stage process, from raw chemistry to final form, is what allows for a single polymer family to encompass everything from rigid, life-sustaining water pipes to soft, protective fabrics. Understanding how PVC is made reveals why it remains a material of choice for applications demanding engineered performance and long-term reliability. Whether your project requires a robust pvc fabric material or a specialized laminate pvc solution, its manufacturing journey is a testament to its value.
