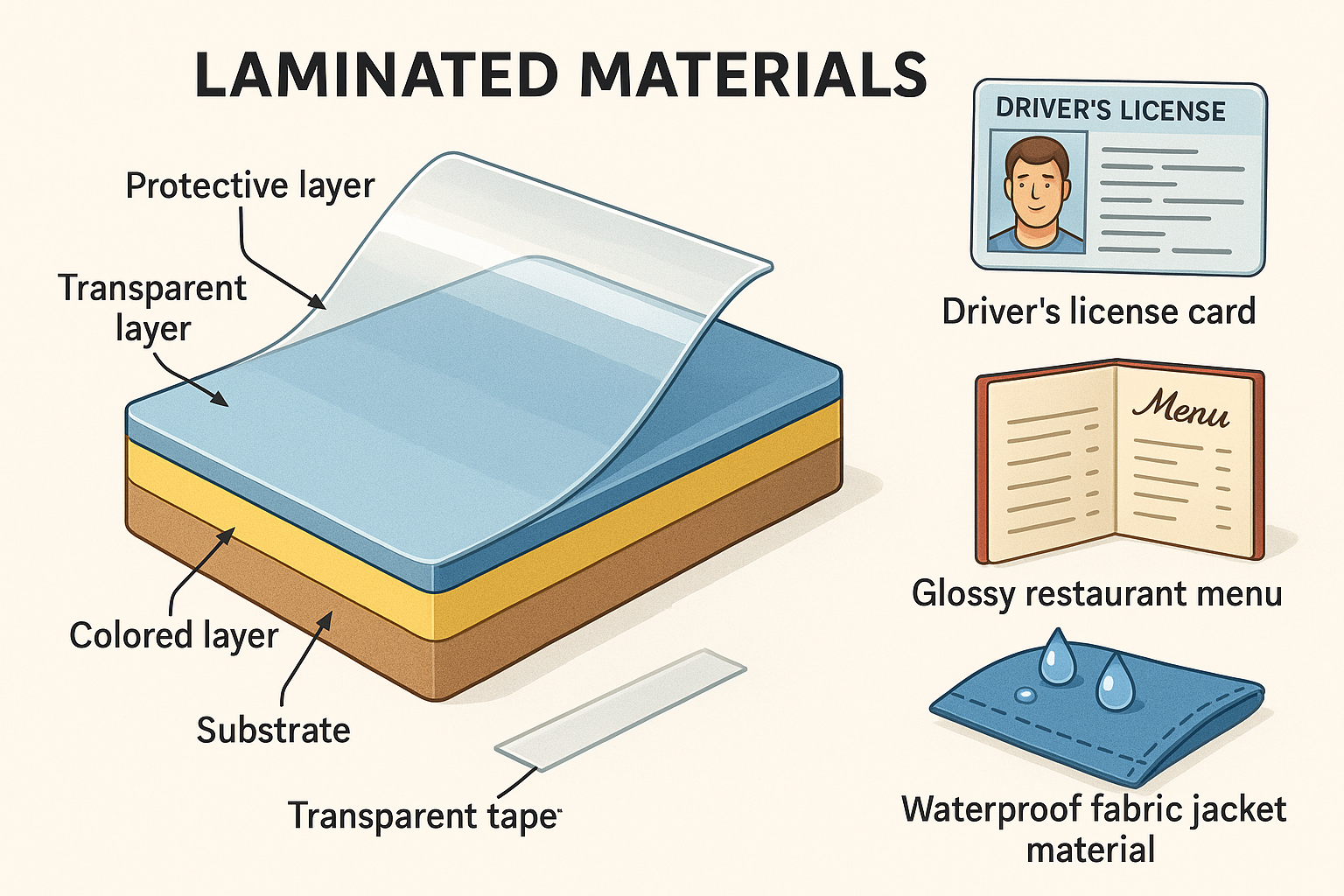

What Are Laminated Materials?

Have you ever looked closely at your driver's license, a restaurant menu, or even a modern waterproof jacket? If so, you've seen a laminated material. Simply put, a laminated material is made by sticking two or more layers of material together. This isn't just for looks; it's a smart way to create a new material with better qualities. The goal is to combine the best features of each layer to make something better than what you'd get from just one layer—like making it stronger, more stable, waterproof, or better looking.

This guide will teach you everything you need to know about the topic. We will look at all kinds of laminated materials, starting with things you see every day and then moving to high-tech solutions used in modern industry. We will cover:

  • Easy-to-understand examples of lamination in daily life
  • Detailed industrial and business uses
  • The main benefits that make lamination so useful
  • How these materials are made
  • A guide to picking the right laminated material for what you need

Common Lamination Examples

The idea of lamination becomes much clearer when you realize how often you see it. These materials are built into our everyday world, giving protection, strength, and usefulness in ways we often don't notice. Here are some of the most common examples.

Laminated Documents & IDs

This is probably the most well-known example. Your ID card, social security card, or a work sign is usually a piece of paper or thin cardboard sealed between two layers of clear plastic film. The lamination does two main things: it makes the document very strong against bending, tearing, and water damage, and it makes it harder to tamper with, since changing the document would mean breaking the plastic seal.

Kitchen Countertops

Many modern kitchen countertops, especially those called high-pressure laminates (HPL), are great examples of lamination. They have a core base, usually particleboard or medium-density fiberboard (MDF), stuck under high pressure and heat to a decorative top layer. This top layer is itself made of kraft paper mixed with resin and a final printed decorative sheet topped with a clear, tough wear layer. The result is a surface that costs less money, resists stains and scratches very well, and comes in countless designs.

Laminated Flooring

Working like countertops, laminated flooring offers a strong and affordable alternative to hardwood or tile. It is built in multiple layers. The bottom is a stabilizing layer, followed by a high-density fiberboard (HDF) core. Above that is a high-quality photo layer—what gives the plank its wood or stone look. Finally, a clear, extremely tough wear layer is put on to protect the floor from fading, scratches, and damage.

Safety Glass

The windshield of your car is an important safety part and a smart laminated material. It is made by putting a thin, flexible layer of polyvinyl butyral (PVB) plastic between two sheets of glass. If something hits it, the glass may crack, but the PVB layer holds the pieces together, stopping dangerous sharp pieces from flying into the car and keeping the windshield strong. This shatter-resistance comes directly from the lamination process.

Book Covers & Menus

The shiny, strong covers on many paperback books and the spill-proof menus at your favorite restaurant are made by putting a thin plastic film over printed paper or cardboard. This simple process makes the item last much longer. It protects the ink from smearing, guards against spills and water, and stops the corners and edges from wearing out with repeated use.

Waterproof & Breathable Clothing

High-performance outdoor clothing is a great example of textile lamination. A typical waterproof jacket isn't just one piece of fabric; it's often a 2-layer or 3-layer laminated system. This means sticking a high-tech waterproof and breathable membrane (like Gore-Tex) to a strong outer fabric and sometimes a protective inner lining. This creates one unified material that keeps water out while letting sweat vapor escape. This same idea is used for heavy-duty industrial uses, leading to advanced materials like a laminated fabric used for protective covers and shelters.

Industrial & Commercial Examples

While everyday examples are easy to understand, the true power and usefulness of lamination show up most in industrial and business sectors. Here, lamination is used to create high-performance materials designed for specific, demanding environments.

High-Performance Textiles and Fabrics

In the industrial world, fabrics must handle extreme conditions. Lamination is the key to reaching this level of performance.

  • PVC Laminated Fabrics: These materials are workhorses in many industries. The process means permanently sticking a layer of Polyvinyl Chloride (PVC) to a base fabric, typically a high-strength polyester scrim. This creates a combined material that is very strong, completely waterproof, UV resistant, and highly resistant to wearing and tearing. Because of these qualities, pvc laminated fabrics are the top choice for uses like heavy-duty truck tarps, large-scale building structures, industrial curtains, and protective covers for outdoor equipment. The base laminated polyester fabric provides the strength, while the laminate pvc coating provides the environmental barrier.

  • TPU Laminated Fabrics: For uses that need more flexibility, puncture resistance, and non-toxic properties, Thermoplastic Polyurethane (TPU) is laminated to a base fabric. These materials are often found in medical equipment like inflatable splints and pressure cuffs, as well as in high-performance outdoor gear like inflatable rafts and dry bags.

Construction & Architectural Materials

Lamination provides the strength and efficiency needed for modern construction.

  • Structural Insulated Panels (SIPs): SIPs are a high-performance building system. They have an insulating foam core (like expanded polystyrene) sandwiched between two structural facings, typically oriented strand board (OSB). This laminated panel provides structure, insulation, and an air barrier in one efficient part, speeding up construction time.

  • Laminated Veneer Lumber (LVL): LVL is an engineered wood product created by bonding multiple thin layers of wood veneer together with adhesives. This process spreads out flaws in the wood, resulting in a beam or header that is stronger, straighter, and more uniform than traditional sawn lumber of the same size.

  • Architectural Membranes: Many of the world's most famous tensile structures, such as stadium roofs and large event pavilions, are made from a heavy-duty pvc fabric. This material is a sophisticated laminate, designed to handle massive wind loads, block UV radiation, and provide decades of service in exposed conditions.

Packaging Materials

Lamination is essential for modern food and medical packaging, ensuring product safety and making products last longer.

  • Aseptic Cartons: The cartons used for milk, juice, and soup (often known by the brand name Tetra Pak) are amazing examples of multi-layer lamination. They are typically made of up to six layers, including paperboard for stiffness, polyethylene for sticking and as a liquid barrier, and a very thin layer of aluminum foil to block out light and oxygen, preventing spoilage without refrigeration.

  • Flexible Packaging: The bag that holds your coffee beans or potato chips is another example. It's often a lamination of several different plastic films (e.g., PET, PE, metallized film). Each layer is chosen for a specific quality—one for printability, one for strength, and another to provide an oxygen or moisture barrier, keeping the food fresh.

The "Why": Core Benefits

We laminate materials to create a combination that performs better than any single part could on its own. The specific advantages depend on the layers used, but the core benefits are universal and are the driving force behind the technology's widespread use. The global market for industrial fabrics, where lamination plays a key role, is projected to reach over USD 220 billion by 2030, driven by the demand for materials with these enhanced properties.

  • Enhanced Durability & Strength: By bonding multiple layers, we can create a material with superior tensile strength, tear resistance, and puncture resistance. The base fabric provides the strength, while the laminated layer protects it, as seen in industrial tarps.

  • Waterproofing & Weather Resistance: This is a primary benefit for many uses. A non-porous film laminated to a base creates an unbreakable barrier against rain, snow, and moisture. This is a defining characteristic of high-quality pvc laminated fabrics used for outdoor covers and architectural membranes.

  • Improved Looks & Finish: Lamination allows for putting a high-quality printed layer on a less expensive, structural core. This is the principle behind laminated flooring and countertops, enabling a premium look without the premium cost. It can also provide a gloss, matte, or textured finish.

  • Chemical & UV Resistance: In harsh industrial or outdoor environments, a laminated top layer can be specifically designed to resist breakdown from chemicals, oils, and long exposure to ultraviolet (UV) radiation, protecting the layers beneath.

  • Thermal or Acoustic Insulation: By adding a core layer of insulating foam or felt, laminated panels can provide excellent heat or sound-dampening properties. This is used in building panels (SIPs) and car parts.

  • Safety & Security: Lamination is a key technology for safety. It creates shatterproof glass for vehicles and buildings, and it is used to create tamper-evident seals on packaging and official documents.

A Look Inside the Process

Understanding how materials are laminated gives insight into the final product's characteristics and performance. In our experience in the industrial fabrics industry, the choice of lamination method is critical to the final product's performance. While there are many specialized techniques, most fall into one of three primary categories.

Thermal Lamination (Hot Lamination)

This is one of the most common methods. It uses a laminating film that has a heat-activated adhesive on one side. The base material (e.g., paper) and the film are passed through heated rollers. The heat melts the adhesive, and the pressure from the rollers forces the film to bond securely and smoothly to the base material. As it cools, the bond becomes permanent. This process is fast, efficient, and creates a very strong, durable bond. It is the method used for everything from ID cards to the manufacturing of heavy-duty pvc fabric material.

Pressure-Sensitive Lamination (Cold Lamination)

Cold lamination does not use heat. Instead, it uses a laminating film with a very strong, pressure-sensitive adhesive protected by a release liner. The liner is peeled away, and the film is applied to the base material using pressure from rollers. This pressure is enough to create a strong bond. Cold lamination is ideal for base materials that are heat-sensitive and could be damaged by hot rollers, such as certain types of inkjet prints, vinyl, and plastics.

Liquid Lamination (Coating)

Unlike the other methods that use a film, liquid lamination means applying a liquid coating that hardens to form a protective layer. The liquid, often a UV-curable polymer, is applied to the surface of the material with a roller or sprayer. It is then exposed to UV light, which instantly cures and hardens it into a durable, protective finish. This method is excellent for irregularly shaped objects or for large-format prints like vehicle wraps and outdoor banners, where applying a film would be difficult. It provides excellent protection against wearing and UV damage.

Choosing the Right Laminated Material

With so many options, selecting the right laminated material depends entirely on the specific demands of your project. The trade-offs between cost, durability, flexibility, and looks are critical. An indoor promotional sign has vastly different requirements than an architectural membrane for a stadium roof. For example, you would never use laminated paper for an outdoor banner, as it would quickly break down; a robust laminated fabric is the only viable choice for long-term weather exposure.

Comparison Table: Key Laminated Materials

To simplify the decision-making process, we've created this table comparing three common categories of laminated material examples.

Material Key Properties Common Applications Relative Cost
Laminated Paper/Card Good rigidity, printable, moisture resistant, low durability. Menus, book covers, ID cards, short-term signage. Low
Laminated Wood (Plywood/LVL) High structural strength, good dimensional stability, heavy. Beams, headers, subflooring, furniture, formwork. Medium
PVC Laminated Fabric Waterproof, high tensile strength, UV/abrasion resistant, flexible. Truck tarps, architectural membranes, industrial curtains, protective covers. Medium-High

Factors to Consider for Your Project

When choosing a laminated material, work through this checklist to ensure you cover all critical requirements:

  • Environmental Exposure (Indoor vs. Outdoor): Will the material be exposed to rain, sun, and temperature changes? This is the single most important factor.
  • Required Lifespan & Durability: Does the product need to last for weeks, years, or decades? What level of wearing, tearing, or impact will it face?
  • Flexibility vs. Rigidity: Does the material need to be stiff like a board, or does it need to be flexible to fold, roll, or conform to a shape?
  • Budget Constraints: While performance is key, cost is always a factor. Engineered materials often have a higher upfront cost but provide a lower total cost of ownership due to their longevity.
  • Aesthetic Requirements: Does the material need to be a specific color, have a high-gloss finish, or feature a high-quality printed image?

For unique industrial challenges, a standard off-the-shelf product may not work. Understanding how the pvc made products are manufactured can be invaluable for developing a custom solution. If you are searching for pvc fabric near me for a large-scale project, working directly with a manufacturer can ensure the material is designed precisely for your application's unique stresses and environmental conditions.

The Versatile World of Lamination

From the simple ID card in your wallet to the complex, multi-layer fabrics that shelter entire stadiums, lamination is a fundamental and versatile technology. It is a powerful tool for material science, allowing us to combine layers to create combinations that are stronger, more durable, and more functional than their individual parts. By understanding the different types, benefits, and processes, you can better appreciate the engineered solutions all around us and make more informed decisions for your own projects. For the most demanding applications where weather resistance and immense strength are non-negotiable, high-performance materials like pvc laminated fabrics offer a level of performance that is simply unattainable with single-layer materials.
