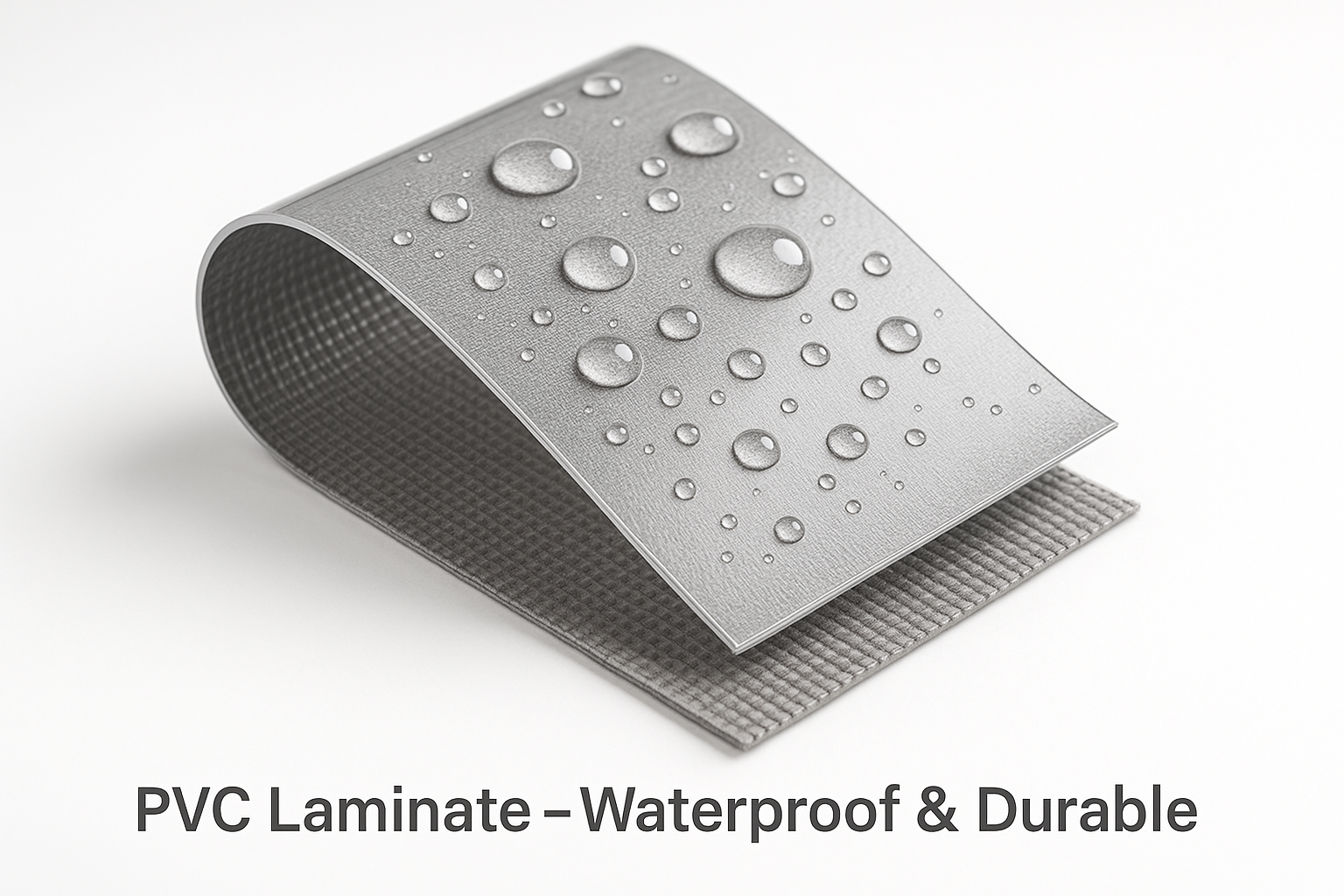

What is PVC Laminate? The Complete Guide to Laminated Fabrics

What is PVC Laminate at a Glance?

PVC laminate is a specially made material that combines two parts. It's created by permanently joining one or more layers of PVC (a type of plastic film) to a strong fabric underneath. This process doesn't just put a coating on top - it creates a completely new material that combines the best features of both parts.

The main idea is to combine the strength and stability of the fabric with the waterproof and protective qualities of the PVC film. The result is a material that works much better than either part would on its own. It solves the main problems of regular fabrics - like letting water through and breaking down in bad weather - while keeping the flexibility and strength that a solid plastic sheet couldn't provide. This makes it a key material for products that need to work reliably in tough conditions.

For designers, engineers, and buyers, understanding how this material is made is the first step to using it effectively.

• Waterproof & Weather-Resistant: The continuous PVC film creates a barrier that water cannot pass through and is highly resistant to wind, snow, and other weather conditions.
• High Durability: The material shows exceptional resistance to scraping, tearing, holes, and general wear, ensuring it lasts a long time.
• Engineered Versatility: By changing the fabric underneath, PVC film thickness, and additives, the material can be precisely made for many different uses, from lightweight bags to heavy-duty building structures.
• Aesthetic Flexibility: PVC laminates are available in many colors, can be finished with matte or shiny surfaces, and can be textured with various patterns.

The Science Behind Strength

Understanding how PVC laminate is made is important for appreciating its quality and performance. The process is a careful exercise in material science, designed to create a bond that can't be separated and can withstand years of stress. It transforms the material from separate parts into a single, high-performance composite.

The Core Components

The final properties of a PVC laminate are determined by two main parts: the fabric underneath and the PVC film. Choosing each one is a critical engineering decision.

The Fabric Base: This is the structural backbone of the material. While various fabrics can be used, high-strength polyester and nylon are the industry standards. Polyester is the most common choice, known for its excellent strength-to-weight ratio, low stretch, size stability, and natural resistance to UV damage and moisture. A laminated polyester fabric offers an excellent balance of performance and cost for most uses. Nylon, while typically more expensive, may be chosen for applications requiring better resistance to scraping and more flexibility. The fabric's construction - specifically the fiber thickness and thread count - directly determines the final material's strength.

The PVC Film: This is the protective shield. The PVC film layer provides the critical waterproofing, chemical resistance, and weather protection. The thickness of this film, measured in ounces per square yard or grams per square meter, is a key performance indicator. Thicker films generally offer increased durability and resistance to scraping. Furthermore, the PVC formula can be customized with additives like UV blockers to prevent sun damage, flexibility enhancers for cold temperatures, and flame-resistant compounds to meet safety codes.

The Lamination Process

The joining of fabric and film is achieved through a multi-stage heat lamination process.

1. Fabric Preparation: The process begins with the base fabric. The roll of polyester or nylon is carefully inspected, cleaned, and often pre-treated with a chemical primer. This step is essential to remove any dirt and to prepare the fabric's surface to achieve maximum bonding with the PVC film.

2. Adhesive Application: A specialized heat-activated adhesive or bonding agent is applied. In most modern processes, the adhesive is part of the PVC film itself, activated by heat. This ensures an even, consistent bond across the entire surface of the material.

3. Joining the Layers: The prepared fabric and the PVC film are fed together through a series of large, heated, high-pressure rollers. The combination of intense pressure and controlled heat (often exceeding 350°F / 177°C) melts the PVC and adhesive, forcing it to flow and permanently join with the fabric. This is the critical moment where the pvc made material is truly formed into a single sheet.

4. Cooling & Setting: Immediately after exiting the rollers, the newly formed laminate is passed over a series of cooling drums. This rapidly cools the material, hardening the PVC and setting the permanent bond. This controlled cooling process is vital to prevent warping and ensure size stability.

5. Quality Control: The final roll of PVC laminate undergoes strict quality control checks. Technicians test for separation of layers, measure for consistent thickness and weight, and visually inspect for any surface defects. This final step ensures that every yard of material meets the required specifications, a process you can see firsthand when you arrange a factory visit.

Understanding the Performance

The careful manufacturing process results in a material with a unique and powerful set of advantages. These properties are what make PVC laminate the material of choice for applications where failure is not an option.

• Superior Waterproofing: The solid PVC film layer creates a 100% waterproof barrier. Unlike water-resistant fabrics that may eventually get soaked, PVC laminate is truly waterproof, making it the best choice for rain covers, dry bags, and containment liners.

• Exceptional Durability and Scrape Resistance: The tough PVC outer layer is highly resistant to scraping, friction, and rough handling. This allows the material to withstand the demands of daily use in tough environments, from truck tarps rubbing against cargo to gym mats being constantly used. This is a defining characteristic of a quality laminated fabric.

• High Strength and Tear Resistance: The combination of the strong fabric base and the bonded PVC film produces a material with impressive strength. It strongly resists being pulled apart and prevents small cuts from becoming large tears. Depending on the base fabric and overall weight, PVC laminates can be engineered to meet specific standards for tear strength, often exceeding 100 lbs of force.

• UV and Weather Resistance: For outdoor applications, longevity is essential. PVC laminates can be made with advanced UV blockers that protect the material from damage caused by prolonged sun exposure. This prevents the material from becoming brittle and cracking, ensuring a long service life for products like awnings and permanent outdoor covers.

• Chemical Resistance: The PVC surface naturally resists a wide range of common chemicals, oils, greases, and salts. This makes it suitable for industrial curtains in workshops, containment barriers in environmental applications, and tarps used in farming settings.

• Weldability: One of the most significant advantages of pvc fabric is its ability to be heat-welded. Using hot air or high-frequency welders, panels can be joined together to create seams that are as strong and waterproof as the material itself. This allows for the making of very large, continuous waterproof items, something impossible with sewn fabrics that leave thousands of needle holes.

• Low Maintenance: The smooth surface of PVC laminate is easy to clean. Dirt and grime can typically be washed away with just mild soap and water, making it a practical choice for applications where cleanliness and appearance are important.

A Practical Selection Guide

Choosing the correct PVC laminate is not a one-size-fits-all decision. It requires a clear understanding of your project's specific needs. By evaluating a few key variables, you can specify a material that delivers optimal performance, longevity, and value. This guide will help you navigate the critical factors to make an informed choice.

Key Factors to Consider

Before you specify or purchase, analyze your application against these criteria. The relationship between these factors will determine the ideal material for your needs.

• Weight and Thickness: This is the most common specification and a primary indicator of durability.

  • Lightweight (10-14 oz / 340-475 GSM): More flexible and easier to handle. Ideal for applications like waterproof bags, equipment covers, and light-duty banners where flexibility is key and extreme scraping is not a concern.
  • Midweight (16-18 oz / 540-610 GSM): The workhorse of the industry. Offers an excellent balance of strength, durability, and flexibility. Perfect for gym mats, industrial curtains, and general-purpose tarps.
  • Heavyweight (20-30+ oz / 680-1017+ GSM): Engineered for maximum strength and scrape resistance. Specified for demanding applications like long-haul truck tarps, building tensile structures, and heavy-duty containment liners where durability is the absolute priority.

• Base Fabric Type (Polyester vs. Nylon): The choice of fabric significantly impacts performance.

  • Polyester: The industry standard. Offers excellent UV stability, low stretch (maintains its shape), and high strength at a competitive cost. It is the best choice for most static outdoor applications like awnings and covers.
  • Nylon: Offers superior scrape resistance and tear strength compared to polyester of a similar weight. It is also more flexible, especially in colder temperatures. Nylon is often specified for high-wear applications like reinforced patches or certain types of high-end bags.

• Special Coatings & Finishes: Top coats can be applied to the PVC surface to enhance performance.

  • Acrylic Lacquer: A standard finish that provides a shiny, smooth surface. It increases UV resistance and makes the material easier to clean.
  • PVDF Lacquer: A premium top coat that offers superior UV stability, color retention, and self-cleaning properties (dirt has a harder time sticking). It is the standard for long-term building tensile structures and high-end awnings.
  • Flame-Retardant Treatments: Additives are mixed into the PVC compound to make the material meet specific fire safety codes. This is critical for any indoor or public building application.

• UV Resistance Rating: For any product that will live outdoors, this is essential. Manufacturers often specify UV resistance in terms of hours of exposure. A higher rating means a longer service life before the material begins to fade or break down.

• Temperature Range: Consider the operating environment. Standard PVC can become stiff in freezing temperatures. For applications in cold climates, specify a material with a good cold resistance rating, which indicates it has been made with special additives to remain flexible.

Matching Specifications to Application

This table provides a starting point for matching common applications with their ideal PVC laminate specifications.

PVC Laminate in Action

The true measure of any material is its performance in the real world. PVC laminate's unique combination of properties has made it an essential component across a diverse range of industries, solving complex challenges with its robust and reliable nature. These examples illustrate how specific types of PVC laminate are used to meet demanding application requirements.

Industrial & Transportation

Case Study: Long-Haul Truck Tarps. A flatbed truck traveling from Miami to Montreal encounters a wide range of conditions: intense sun and humidity, heavy rain, highway-speed winds, road debris, and below-zero temperatures with snow and ice. The cargo must remain protected. This is the domain of 18oz or 22oz pvc laminated fabrics. The material specified for this task must have high tear strength to resist the constant flapping caused by 70 mph winds, which can quickly destroy lesser fabrics. It requires cold resistance to ensure it doesn't crack when being handled in freezing Canadian winters. Excellent UV blockers are essential to prevent the sun from breaking down the material over millions of miles. Finally, its absolute waterproofness and weldable seams ensure that no matter the weather, the cargo underneath arrives clean and dry.

Building & Recreational

Case Study: Tensile Fabric Structures. Modern airports, stadiums, and outdoor theaters often feature stunning, sail-like canopies that provide both shade and beauty. These are not made from simple canvas. They are engineered from heavyweight (22oz+), flame-retardant PVC laminate. The primary challenge here is structural integrity and longevity. The material must have exceptionally high strength to be stretched across large spans without sagging or tearing. It must be fire-rated to comply with strict public building safety codes. Most importantly, these structures are intended to last for decades. Therefore, they use a premium PVDF top coat, which provides the highest level of UV protection and a slick, self-cleaning surface that allows rain to wash away dirt, maintaining the structure's bright, clean appearance for years with minimal maintenance. The ability to weld large panels together seamlessly is what makes these massive, continuous roof structures possible.

Agriculture & Environmental

Case Study: Flexible Water Tanks. In remote farming areas or emergency response scenarios, access to water is critical. Large, pillow-like flexible water tanks, often holding thousands of gallons, provide a portable and reliable solution. The pvc fabric material used for these tanks is a specialized laminate. It must be made with non-toxic, drinking-grade PVC to ensure the water remains safe for drinking. Puncture resistance is essential; the material must withstand being placed on rough ground without leaking. Furthermore, its chemical stability ensures that nothing leaches from the material into the water, and it can also be used for temporary containment of fertilizers or other non-aggressive chemicals without breaking down. The material's strength allows the tank to withstand the immense water pressure it contains.

Laminate vs. Coated Fabric

In the world of technical textiles, "PVC laminate" and "PVC coated" are often used interchangeably, but they represent two different manufacturing processes and result in materials with different characteristics. Understanding this difference is crucial for specifying the right material for your application.

What is PVC Coated Fabric?

PVC coated fabric is made by applying liquid PVC directly onto the base fabric. This can be done in two primary ways: either by spreading the liquid PVC over the fabric with a knife or blade, or by dipping the fabric directly into a vat of the liquid PVC. After the liquid is applied, the fabric is passed through an oven, which hardens the liquid PVC, joining it directly to and within the fibers of the fabric.

Head-to-Head Comparison

The choice between laminated and coated fabric depends on the final application's priorities. A smoother finish and uniform thickness might favor a laminate, while applications requiring the absolute highest adhesion might lean toward a coated product.

Extending the Lifespan

PVC laminate is an exceptionally durable material, but proper care and maintenance will significantly extend its service life and keep it looking its best. Following these simple guidelines will protect your investment and ensure maximum performance over the long term.

Routine Cleaning

Regular cleaning prevents the buildup of dirt and grime, which can be scraping and can support mildew growth in damp conditions.

• Use a simple solution of mild soap (like dish soap) and lukewarm water.
• Apply the solution with a soft-bristled brush or sponge. Work in sections and gently scrub the surface to lift away dirt.
• Rinse the material thoroughly with clean water. It is critical to remove all soap residue, as it can attract dirt and may damage the surface over time.
• For best results, allow the fabric to air dry completely.
• Never use harsh chemical cleaners, solvents, bleach, or scrubbing pads, as they can permanently damage the PVC film and any protective top coats.

Storage Best Practices

How you store your PVC laminate product is just as important as how you clean it. Improper storage is a primary cause of early failure.

• Ensure the fabric is completely clean and, most importantly, completely dry before storing. Trapped moisture will lead to the growth of mold and mildew, which can stain and weaken the material.
• Whenever possible, store the material rolled rather than folded. Folding creates sharp creases that, over time, can weaken the PVC and the fabric underneath, leading to cracks and tears along the fold lines. If you must fold it, make the folds as loose as possible.
• Store the rolled material in a cool, dry, and dark place. Exposure to direct sunlight and extreme temperatures during storage should be avoided.

Minor Repairs

One of the benefits of PVC laminate is its ability to be repaired.

• Small punctures or tears can often be easily repaired. For a lasting fix, use a patch of the same PVC laminate material and a compatible vinyl adhesive.
• Clean the area around the damage thoroughly with rubbing alcohol to remove any dirt or oils. Apply the adhesive to both the patch and the damaged area, let it become tacky, and then press the patch firmly in place, ensuring there are no air bubbles.

Your Go-To Material for Performance

In summary, PVC laminate is far more than just a waterproof material; it is a highly engineered composite solution designed for superior performance, durability, and longevity. Its ability to be precisely tailored—from its weight and strength to its resistance to UV rays and chemicals—makes it one of the most versatile technical textiles available.

From protecting valuable goods on the road as truck tarps to enabling breathtaking building designs and ensuring safe water storage, its unique combination of strength, waterproofness, and stability makes it an indispensable pvc fabric. Whether you are an engineer specifying a material for a harsh industrial environment or a product designer creating a new line of high-performance gear, understanding the properties and selection criteria of PVC laminate is the key to a successful outcome.

Ready to explore the possibilities for your next project? We encourage you to browse our complete collection of pvc laminated fabrics to find the perfect specification. For those who require a robust laminated pvc tarp, our range offers solutions for every level of demand. If you're looking to source the material and want to see the quality and manufacturing process firsthand, we invite you to book a factory tour with our experts today.
